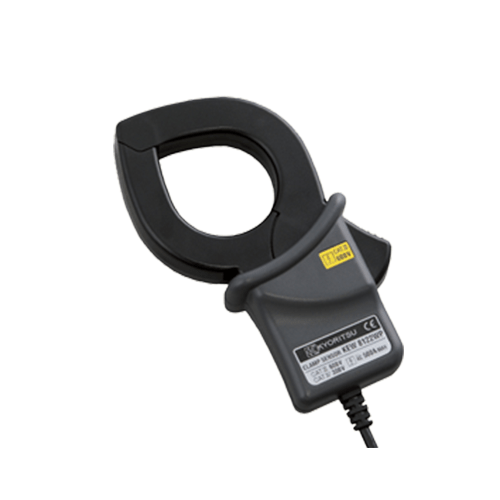

KYORITSU 8122 Load Current Clamp Sensor (AC 500A)

Conductor size: Ø40mm

Rated current: AC 500A

Output voltage: AC 500mV/500A (AC 1mV/A)

Accuracy: ±2.0%rdg±0.3mV (50/60Hz)

                 ±3.0%rdg±0.5mV (40Hz - 1kHz)

Cable length: Approx. 2m

Output connector: MINI DIN 6pin

Output impedance: Approx. 1.9Ω

Applicable standards: IEC 61010-1, IEC 61010-2-032 CAT III 600V pollution degree 2, IEC 61326

Operating temperature & humidity range: 0 - 40ºC, less than 85% RH (without condensation)

Dimensions: 128(L) x 81(W) x 36(D) mm

Weight: Approx.260g

Included Accessories: 9095 (Carrying case), Instruction manual, Cable marker

Optional Accessories: 7146 (Banana Ø4 adjuster plug), 7185 (Extension Cable)
