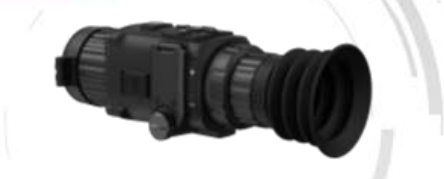

HIKMICRO TH25 Thermal Image Scope (384 × 288 pixel)

Thermal Module

Image Sensor: Uncooled Focal Plane Arrays

Pixel Interval:  17 μm

Max. Resolution:  384 × 288

Response Waveband:  8 μm to 14 μm

NETD: < 35 mk (25 °C,F#=1.0)

Lens (Focal Length):  25 mm

IFOV:  0.68 mrad

Field of View : 14.9°× 11.2°

F Number:  F1.0

Frame Rate:  50 Hz

Magnification:  1.5X


Image Display

Monitor:  0.39-inch, OLED, 1024 × 768

Palettes:  Black hot, white hot, red hot, fusion

Exit Pupil:  6 mm

Eye Relief:  45 mm

Observation Distance Max.:  882 m

Contrast Adjustment:  Yes

Brightness Adjustment:  Yes


Power Supply

Battery: Replaceable ,Applicable type: CR123A, RCR123A

Battery Operating Time:  4.5 h (25 °C, with hotspot off) , 4 h (25 °C, with hotspot on)

Anti-reverse battery connection:  Yes

Overvoltage Protection:  Yes

Battery Capacity Display:  Yes

Type-C Power Supply:  5 VDC, 2 A, Supports external power supply


General

Port:   Type-C

Working Temperature:   -20 °C to 55 °C (-4 °F to 131°F)

Protection Level:   IPX7

Vibration & Shock:   750 g/1 ms

Dimension (L × W × H):   187.2 mm × 62.5 mm × 59.2 mm (7.37" × 2.46" × 2.33")

Weight:   0.39 kg (0.86 lb) without eyepiece and batteries
