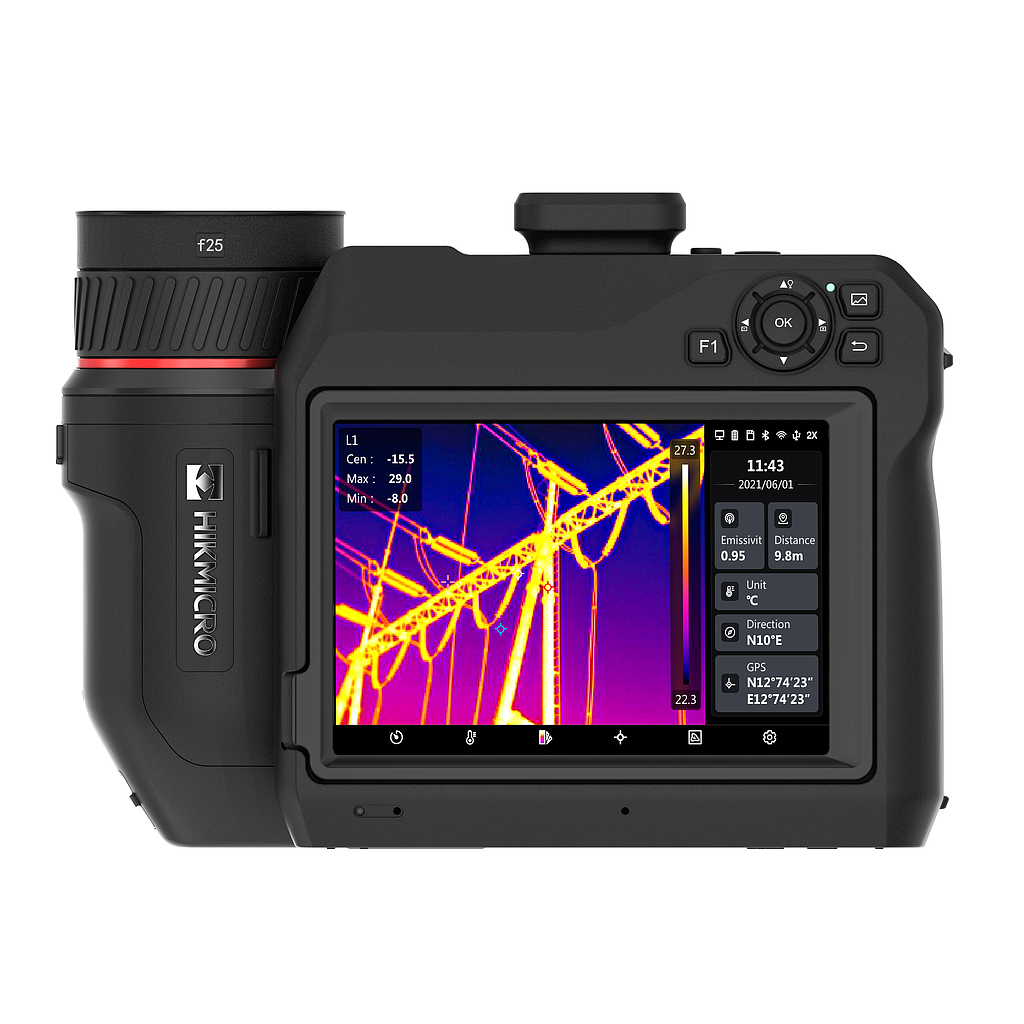

HIKMICRO SP60-L12 Handheld Thermography Camera (640x480px, -20~650°C; 0.33mrad)

THERMAL MODULE

Detector type: Vanadium Oxide Uncooled Focal Plane Array

IR Resolution: 640 x 480 (307,200 pixels)

Spectral range: 8 to 14 μm

NETD: < 0.03°C (30 mK) at 25°C (77°F) ambient temperature, F# - 1.0

FOV (Field of View): 8° H x 6°V

Image frequency: 25 Hz

Focal length: 51.4 mm

Focus: Continuous Autofocus/Autofocus/Manual Focus/Laser Assisted Focus

Focus speed: Approx. 1 second

Minimum focus distance: 1 m

Interchangable lens options: Yes

Lens recognition: Automatic

IFOV (Spatial resolution): 0.33 mrad

F-number: F1.1

OPTICAL MODULE

Focus: Fixed

FOV: 65° H x  51°V

Picture resolution: Configurable: 2 MP, 5 MP, 8 MP

Video resolution: 960 x 720

IMAGE DISPLAY

Display: 1280 x 720 Resolution, 5" LCD Touch Screen

Screen brightness: Manual/Automatically adjust

Lens rotation: 180°

Display rotation: 90°

Digital zoom: 1.x to 12.x continuous

Color palettes: 7: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain

Image modes: Thermal/Optical/Fusion/PIP

MEASUREMENT AND ANALYSIS

Object temperature range: -20°C to 650°C (-4°F to 1202°F)

Accuracy: max. (± 2°c/3.6°f, ±2%)

DATA STORAGE

Storage media: Default Storage: Removable Card (64 GB); Max. Storage Capacity: 128 GB

Image storage capacity: Approx. 60,000 images (The size of a single image is about 900 KB to 1.3 MB)

Voice note: Max. 60 seconds

Text note: Max. 200 characters

Video storage capacity: Approx. 64 h (The size of a one-minute video is about 15 MB to 20 MB)

Video file format: Standard MP4 non-radiometric video

BATTERY

Power supply: 12 VDC/3 A, 5 VDC/3 A (Charging via USB), fast charging

Battery type: dismountable and rechargeable li-ion battery

Battery operating time: 4 hours continuous running per battery (actual life varies depending on settings and usage)

Battery charging time: 2.5 h to full charge

Battery charging system: two-bay battery charger or in-imager charging, fast charging

GENERAL

Wi-fi: 802.11 b/g/n(2.4 GHz)

Bluetooth: Bluetooth 4.2

USB interface: USB Type-C

HDMI interface: HDMI-D

SD card interface: 64 GB SD card

Protection level: IP54 (protected against dust, limited ingress; protection against water spray from all directions)

Safety: IEC 61010-1: Overvoltage Category II, Pollution Degree 2

Weight:  Approx. 1590 g (3.51 lb)

Dimension: 204.7 mm * 149.7 mm * 87.8 mm (8.06" * 5.89" *3.46")

Language: 21 Languages
