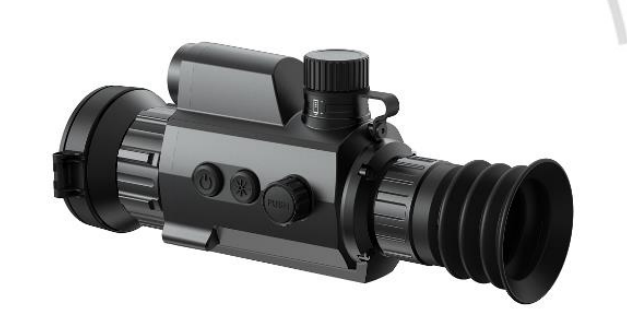

HIKMICRO PH50L Thermal Image Scope (384 × 288 pixel)

Thermal Module

Image Sensor: Uncooled Focal Plane Array

Max. Resolution : 384 × 288

Frame Rate:  50 Hz

Pixel Interval:  12 μm

Response Waveband:  8 μm to 14 μm

NETD : < 35 mK (25°C, F# = 1.0)

Lens (Focal Length):  50 mm

Detection Range:  2600 m

Field of View:  5.28° × 3.96°

Min. Focusing Distance : 5 m

Aperture:  F1.0

Magnification:  4.33×


Image Display

Display:  1024 × 768, 0.39 inch, OLED

Image Mode:  Black Hot, White Hot, Red Hot, Fusion

FFC (Flat Field Correction) Mode:  Auto, Manual, External Correction

Exit Pupil:  6 mm

Eye Relief:  45 mm

Diopter (Range: ) -5 D to 3 D


Power Supply

Battery Type:  One Rechargeable Lithium battery

Battery Operating Time:  6 hours continuous running (@25°C, Wi-Fi and CVBS off)

Battery Capacity Display:  Yes

Anti-reverse Battery Connection:  Yes

Overvoltage Protection:  Yes

Type-C Power Supply: 5 V DC/2 A, USB Type-C interface3, Supports external power supply


General

Work Temperature/Humidity:  -30°C to 55°C (-22°F to 131°F)

Protection Level:  IP67

Dimension:  214.10 × 74.30 × 88.71 mm (8.43 × 2.93 × 3.50 inch)

Weight:  < 585 g without eyepiece and batteries

Port:  Type-C


Laser Rangefinder

Safety Class for Laser:  Class 1

Wavelength:  905 nm

Max. Measuring Range:  600 m

Measurement Accuracy:  ± 1 m

Min. Measuring Range:  10 m
