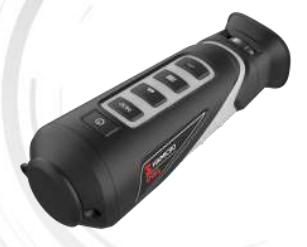

HIKMICRO OH35 Handheld thermal monocular camera (384 × 288 pixel)

Thermal Module

Image Sensor: VOx Uncooled Focal Plane Arrays

Resolution:  384 × 288

Frame Frequency:  50 Hz

Pixel Interval:  17 μm

Response Waveband:  8 μm to 14 μm

NETD:  <35 mK (@25°C),F#=1.0

Focal Length:  35 mm

Field of View:  10.66° × 8°(H × V)

Aperture:  F1.0

Magnification: 2.3 - 18.4


Image Display

Monitor:  0.39 inch, OLED, 1024 × 768

Palettes:  Black Hot, White Hot, Red Hot, Fusion

FFC (Flat Field Correction):  Mode Auto, Manual, External Correction

Digital Zoom:  1×,2×,4×,8×


Smart Function

Hot Track:  Yes

Detection Range: 1235 m


Power Supply

Battery Type:  Rechargeable Lithium Battery

Battery Operating Time: 7 hours continuous running with Wi-Fi hot spot function off (@25 °C), 5.5 hours continuous running with Wi-Fi hot spot function on (@25 °C)

Battery Capacity Display:  Yes


General

Mounting:  UNC 1/4' - 20

Hardware Interface:  Type-C USB

Power:  5 VDC/2 A

Power Consumption:  1.5 W

Work Temperature/Humidity:  From -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less

Protection Level:  IP67

Drop Test Height:  2 m (6.56 feet)

Dimension: 201.6 mm × 73.7 mm × 66 mm (7.94" × 2.90" × 2.60")

Weight: 500 g (1.10 lb)
