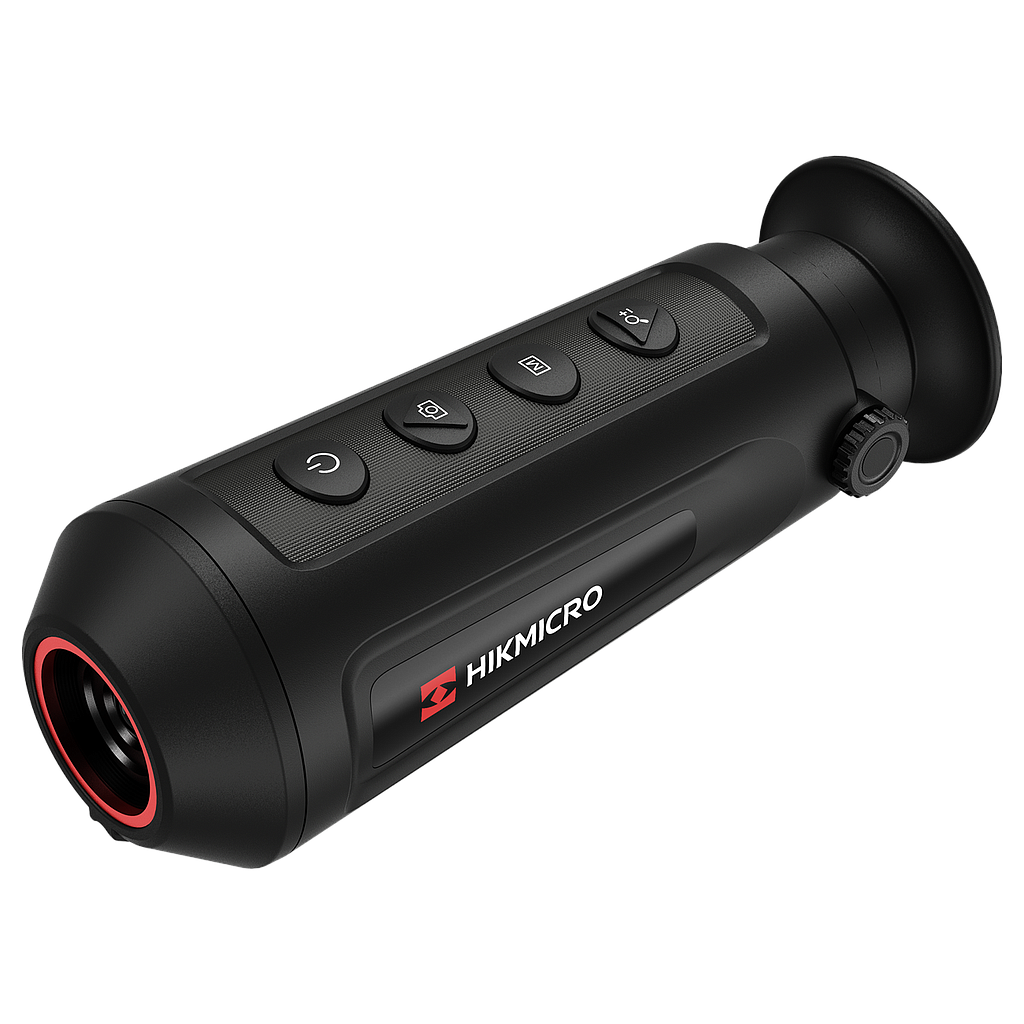

HIKMICRO LE10 Handheld thermal monocular camera (256 × 192 pixel)
Manufacturer: HIKMICRO Model: LE10 P/N: HM-TS02-10XG/W-LE10 - Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Thermal Module
Image Sensor: VOx Uncooled Focal Plane Arrays
Max. Resolution: 256 × 192
Pixel Interval: 12 μm
Response Waveband: 8 μm to 14 μm
NETD: <35 mK (@25 °C, F# = 1)
Lens (Focal Length): 9.7 mm
Field of View: 18.00° × 13.55°(H × V)
Min. Focusing Distance: 2 m
Aperture: F1.0
Magnification: 1 to 8
Digital Zoom: 1 ×, 2 ×, 4 ×, 8 ×
Image Display
Frame Frequency: 25 Hz
Display: 0.2 inch, LCOS, 720× 540
Palettes: Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction): Mode Auto, Manual, External Correction
Power Supply
Battery Type: Lithium battery
Battery Operating Time: 8 hours continuous running with Wi-Fi hot spot function off (@ 25 °C) , 6 hours continuous running with Wi-Fi hot spot function on (@ 25 °C)
Battery Capacity Display: Yes
General
Work Temperature/Humidity: - 20 °C to 55 °C (- 4 °F to 131 °F)
Power: 5 VDC/2 A, 1.5 W, Type-C Interface
Protection Level: IP67
Dimension: 158.3 mm × 61 mm × 57 mm (6.23" × 2.40" × 2.24")
Weight: 260 g (0.57 lb)
