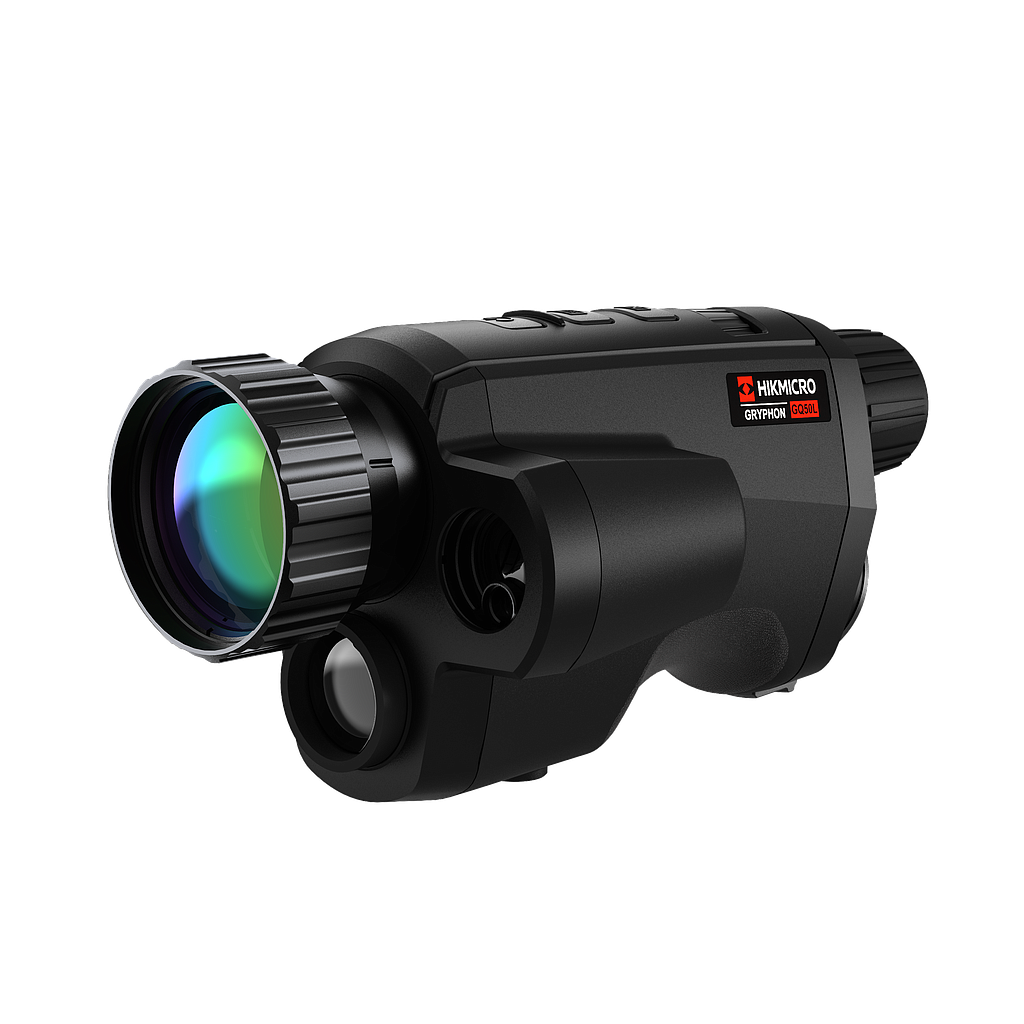

HIKMICRO GQ50L Handheld Thermal Monocular Camera (640x512 pixel; 2.9x)

- Thermal Module

Image Sensor: VOx Uncooled Focal Plane Arrays

Max. Resolution: 640 × 512

Frame Rate: 50 Hz

Pixel Interval: 12 μm

Response Waveband: 8 μm to 14 μm

NETD: <35 mK (@25 °C, F# = 1.2)

Lens (Focal Length): 50 mm

Detection Range: 2600 m

Focus Mode: Manual

Field of View: 8.78° × 7.03° (H × V)

Min. Focusing Distance: 5 m

Aperture: F1.2

Magnification: 2.9

Digital Zoom: 1X,  2X, 4X, 8X

- Optical Module

Image Sensor: 1/2” Progressive Scan CMOS

Focal Length: 22 mm

Wavelength: 400 nm to 1000 nm

Max. Resolution: 1920 × 1080

Min. Illumination: 0.001 Lux@F1.0

- Image Display

Frame Frequency: 50 Hz

Display: 0.39 inch, OLED, 1024 × 768

Image Mode: White Hot, Black Hot, Red Hot, Fusion, Visible, Image Fusion

- Power Supply

Battery Type: One 18650 battery

Battery Operating Time: 4.5 hours

Power: Removable Battery

- General

Protection Level: IP67

Dimension: 87.2 mm × 73.3 mm × 183.6 mm

Weight: 548 g

Working Temperature: -30 to 55 °C

- Laser Rangefinder

Safety Class for Laser: Class 1

Wavelength: 905 nm

Max. Measuring Range: 600 m

Measurement Accuracy: ±1 m
