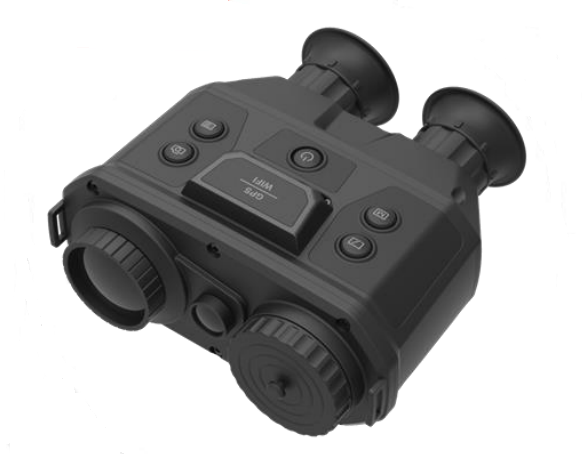

HIKMICRO DS-2TS16-50VI/W Handheld Thermal & Optical Bi-spectrum Binocular (640×512 pixel)

Thermal Module

Image sensor: Uncooled Focal Plane Arrays

Max. Resolution:  640 × 512@25fps

Pixel Pitch:  17μm

Response waveband:  8μm to 14μm

NETD:  < 40mk (@25°C,F#=1.0)

Lens (focal length):  50mm, Manual focus

MRAD (IFOV: ) 0,34

Field of View:  12.42° × 9.95°

Aperture:  F 1.0

Digital Zoom:  4×

Optical Module

Image Sensor:  1/3” Progressive Scan CMOS

Min. Illumination:  B/W : 0.001 lux @ (F1.0 , AGC On )

Max. Resolution:  1280 × 960@25fps

Lens (focal length):  12mm

Image Enhancement:  3D DNR, Adaptive AGC

Image Display

Monitor:  0.39-inch, OLED, 1024 ×768

Thermal/Optical Mode:  Thermal view, B/W optical view, image fusion view are selectable

Image Fusion:  Color fusion, B/W fusion

Palettes:  Black hot, white hot

Power Supply

Battery Type: Four 18650 batteries, requires 5 hours to be fully charged

Battery Operating Time: ≥7h

Battery Capacity Display: Yes

General

Power:  5V DC/2A

Working Temperature:  -30 °C to 55 °C (-22 °F to 131 °F)

Protection level:  IP67

Mounting : UNC 1/4”-20

Cable Output :  Aviation plug: connecting to BNC, DB9, and USB

Accessories (Supplied):  Battery charger, battery charger power cable, wiping cloth, two wrist straps, User manual, aviation plug cable, eight batteries

Dimension (L x W x H):  164mm × 182.3mm × 73.3mm (6.46" × 7.18" ×2.89")

Weight:  <1.0kg (2.20 lb)
