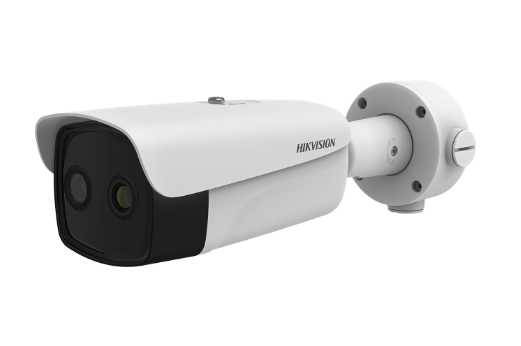

HIKMICRO DS-2TD2637-10/P Thermal & Optical Bi-spectrum Network Bullet Camera (384 × 288 pixel, -20~150°C)

Thermal Module

Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays

Resolution: 384 × 288

Pixel Interval: 17μm

Response Waveband: 8 μm to 14 μm

NETD (Noise Equivalent Temperature Difference): ≤ 35 mk (25 °C,F# = 1.0)

Focal Length: 9.7 mm

IFOV: 1.75 mrad

Field of View: 37.5° × 28.5° (H × V)

Min. Focusing Distance: 1 m

Aperture: F 1.0

Digital Zoom: ×2, ×4, ×8


Optical Module

Image Sensor: 1/2.7" Progressive Scan CMOS

Resolution: 2688 × 1520

Min. Illumination: Color: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON)

Shutter Speed: 1 s to 1/100,000 s

Focal Length: 4 mm

Field of View:  84° × 44.8° (H × V)

Aperture: F1.6

WDR: 120 dB


Image Effect

Picture in Picture: Display partial image of thermal channel on the full screen of optical channel

Bi-spectrum Image Fusion: Display the details of optical channel on thermal channel

Target Coloration: Yes. Supported in white hot and black hot mode.


Smart Function

VCA (Video Content Analysis): 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.

Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).

Temperature Range: -20 °C to 150 °C (-4 °F to 302°F)

Temperature Accuracy: ± 8 °C (± 14.4 °F)

Fire Detection: Dynamic fire detection, up to 10 fire points detectable.


Illuminator

IR Distance: Up to 40 m

IR Intensity and Angle: Automatically adjusted


General

Menu language: 32 languages

Power: 24 VAC± 25%, 12 VDC± 25%, two-core terminal block PoE (802.3af, class 3)

Power Consumption: 18 VAC to 30 VAC: 0.38 A to 0.22 A, max. 9 W 9 VDC to 15 VDC: 0.63 A to 1.06 A, max. 9 W PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A, max. 9.5 W

Working Temperature/Humidity: Temperature: -40 °C to 65 °C (-40 °F to 149 °F) Humidity: 95% or less

Protection Level: IP66 Standard TVS 6000V lightning protection, surge protection, voltage transient protection

Dimensions: 376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")

Weight: Approx. 1.82 kg (4.01 lb)
