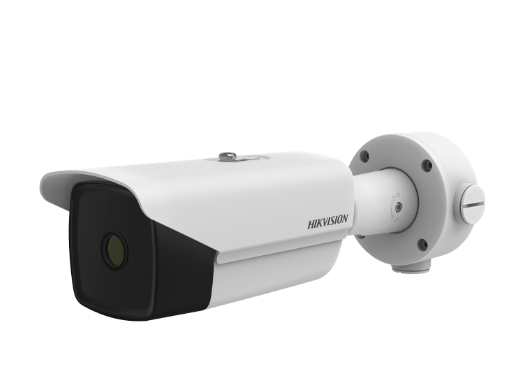

HIKMICRO DS-2TD2166T-15 Thermal Network Bullet Camera (640 × 512 pixel, -20~550°C)

Thermal Module

Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays

Max. Resolution:  640 × 512

Pixel Interval:  17 μm

Response Waveband:  8 μm to 14 μm

NETD:  less than 40mk (@25°C,F#=1.0)

Lens (Focal Length):  15 mm

MRAD:  1.13 mrad

Field of View:  42.5° × 33.6° (H × V)

Min. Focusing Distance:  2.5 m

Aperture:  F 1.0


Smart Function

VCA (Video Content Analysis): 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to; 8 VCA rules.

Temperature Measurement:  3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).

Temperature Range:  -20 °C to 550 °C (-4 °F to 1022 °F)

Temperature Accuracy:  Max (± 2 °C, ± 2%)

Fire detection:  Dynamic fire point detection, up to 10 fire points detectable.


General

Menu language:  English

Power: 24 VAC± 25%, 12 VDC± 20%, two-core terminal block; PoE (802.3at, class 4)

Power Consumption:  24 VAC± 25%: 0.92 A, 12 VDC ± 20%: 1.9 A, max. 8W (22W with De-icing Heater On), PoE (802.3at, class 4): 42.5 V to 57 V, 0.4 A to 0.5 A

Working Temperature/Humidity:  -40 °C to 65 °C (-40 °F to 149 °F), 90% or less

Dimensions 352.4mm × 113.5mm × 113mm (13.9" × 4.45" × 4.45")

Weight Approx. 2kg (4.41lb)
