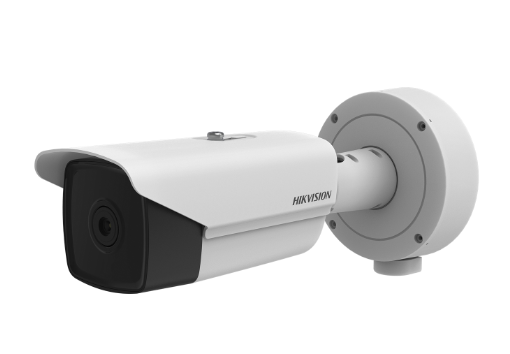

HIKMICRO DS-2TD2117-3/PI Thermal Network Bullet Camera (160×120 pixel, -20°C~150°C)

Thermal Module

Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays

Resolution: 160 × 120 (the resolution of output image is 320 × 240)

Pixel Interval: 17 μm

Response Waveband: 8 μm to 14 μm

NETD (Noise Equivalent Temperature Difference): ≤ 40 mK (25 °C, F# = 1.1)

Focal Length: 3.1 mm

IFOV: 5.48 mrad

Field of View: 50° × 37.2° (H × V)

Min. Focusing Distance: 0.2 m

Aperture: F 1.1

Digital Zoom: ×2, ×4, ×8


Image Effect

Target Coloration:  Yes. Supported in white hot and black hot mode.


Smart Function

VCA (Video Content Analysis): 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.

Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).

Temperature Range: -20 °C to 150 °C (-4 °F to 302 °F)

Temperature Accuracy: ± 8 °C (14.4 °F)

Fire Detection: Dynamic fire detection, up to 10 fire points detectable.


General

Menu Language: 32 languages

Power: 12 VDC± 25%, two-core terminal block PoE (802.3af, class 3)

Power Consumption: 9 VDC to 15 VDC:0.4A, max. 4.5 W PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 5.0 W

Working Temperature/Humidity: -40 °C to 65 °C (-40 °F to 149 °F) 95% or less

Protection Level: IP66 Standard TVS 6000V lightning protection, surge protection, voltage transient protection

Dimensions: 354 mm × 144.1 mm × 156.7 mm (13.94" × 5.67" × 6.17")

Weight: Approx. 1.71 kg (3.77 lb)
