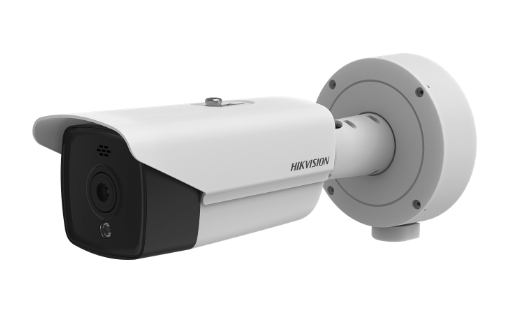

HIKMICRO DS-2TD2117-10/PAI Thermal Network Bullet Camera (160 × 120 pixel, -20~150°C)

Thermal Module
Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
Resolution: 160 × 120 (the resolution of output image is 320 × 240)
Pixel Interval: 17 μm
Response Waveband: 8 μm to 14 μm
NETD (Noise Equivalent Temperature Difference): ≤ 40 mK (25 °C, F# = 1.1)
Focal Length: 9.7 mm
IFOV: 1.75 mrad
Field of View: 15.96° × 12° (H × V)
Min. Focusing Distance: 1.2 m
Aperture: F 1.1
Digital Zoom: ×2, ×4, ×8

Image Effect
Target Coloration: Yes. Supported in white hot and black hot mode.

Audible and Visual Alarm
White Light Range: Up to 40 m
Visual Alarm: Yes. White light used as the visual alarm, flashing frequency adjustable
Audio alarm: Yes. 6 audio alarms are supported to cover all kinds of alarm.

Smart Function
VCA (Video Content Analysis): 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
Temperature Range: -20 °C to 150 °C (-4 °F to 302 °F)
Temperature Accuracy: ± 8 °C (14.4 °F)
Fire Detection: Dynamic fire detection, up to 10 fire points detectable.

General
Menu Language: 32 languages
Power: 12 VDC± 25%, two-core terminal block PoE (802.3af, class 3)
Power Consumption: 9 VDC to 15 VDC:0.4A, max. 4.5 W PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 5.0 W
Working Temperature/Humidity: -40 °C to 65 °C (-40 °F to 149 °F) 95% or less
Protection Level: IP66 Standard TVS 6000V lightning protection, surge protection, voltage transient protection
Dimensions: 354 mm × 144.1 mm × 156.7 mm (13.94" × 5.67" × 6.17")
Weight: Approx. 1.71 kg (3.77 lb)
