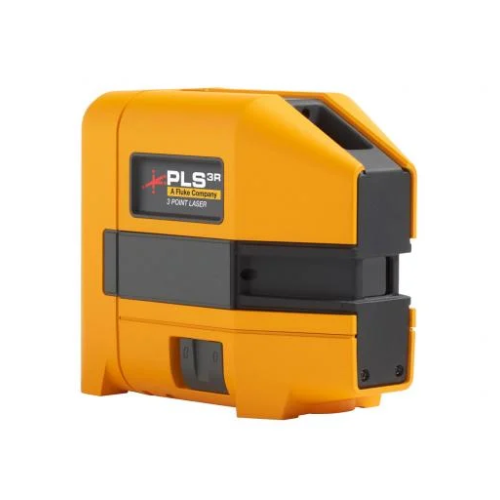

FLUKE PLS 3R Z 3-Point Red Laser Bare Tool

Battery: 3 x AA Alkaline IEC LR6

Battery Life, Continuous Use: Red ≥ 30 hours

                                               Green ≥ 16 hours

Point Laser Direction: 90° up, down, forward

Working Range: ≤ 30 m (100 ft.)

Accuracy: ≤ 3 mm @ 10 m (≤ 1/8 in at 30 ft.)

Laser Leveling:

    System: Automatic, Pendulum

   Range: 4 °

Point Laser Diameter: ≤ 4 mm at 5 m

Temperature: Operating: -10 °C to 50 °C (14 °F to 122 °F)

                      Storage: 15 cm x 9 cm x 3 cm (6 in x 3.6 in x 1.3 in)

                       With Batteries: -18 °C to 50 °C (-0.4 °F to 122 °F)

                       Without Batteries: -20 °C to 70 °C (-13 °F to 158 °F)

Relative Humidity: 0 % to 90 % (0 °C to 35 °C)

                              0 % to 75 % (35 °C to 40 °C)

                              0 % to 45 % (40 °C to 50 °C)

Size (H x W X L): 116 mm x 64 mm x 104 mm (4.6 in x 2.5 in x 4.1 in)

Weight: ~0.6 kg (1.3 lb.)

Safety: IEC 61010-1: Pollution Degree 2

Laser: IEC 60825-1:2014 Class 2

Light Source: Semiconductor laser diode

Max Output Power: < 1 mW

Wavelength: Red: 635 nm ± 5 nm

                     Green: 525 nm ± 5 nm
