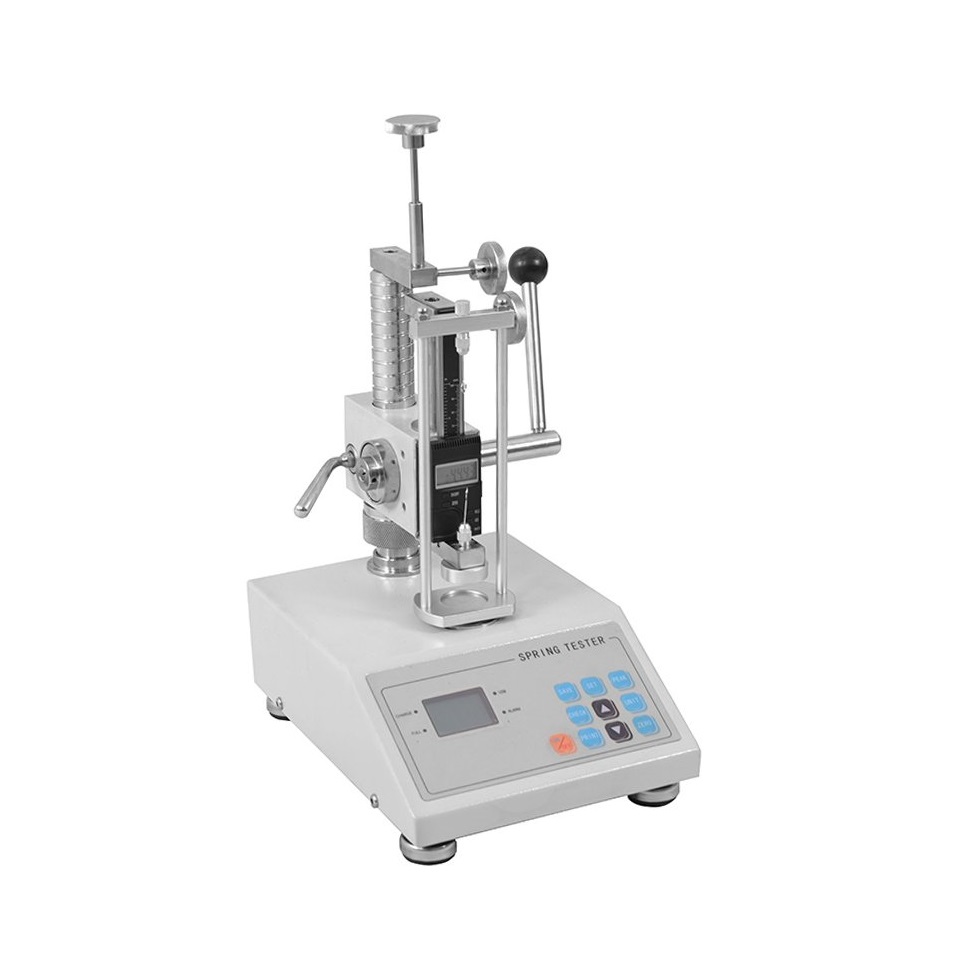

ALIYIQI ATH-100 Digital Display Spring Tension and Compression Testing Machine (100N, 0.01N)

Measuring testing load: 100N

Minimum resolution: 0.01N

Diameter of the platen: 48mm

Maximum free length of measurable spring: 150mm

Length of travel of the displacement scale: 90mm

Division value of the displacement scale: 0.01mm

Indicator error: ±1%

Power supply: AC 110-240V, 50HZ-60HZ

Working temperature: 20±10℃

Temperature of storage and transportation: -27℃~+70℃

Relative humidity: 15%~80%RH
