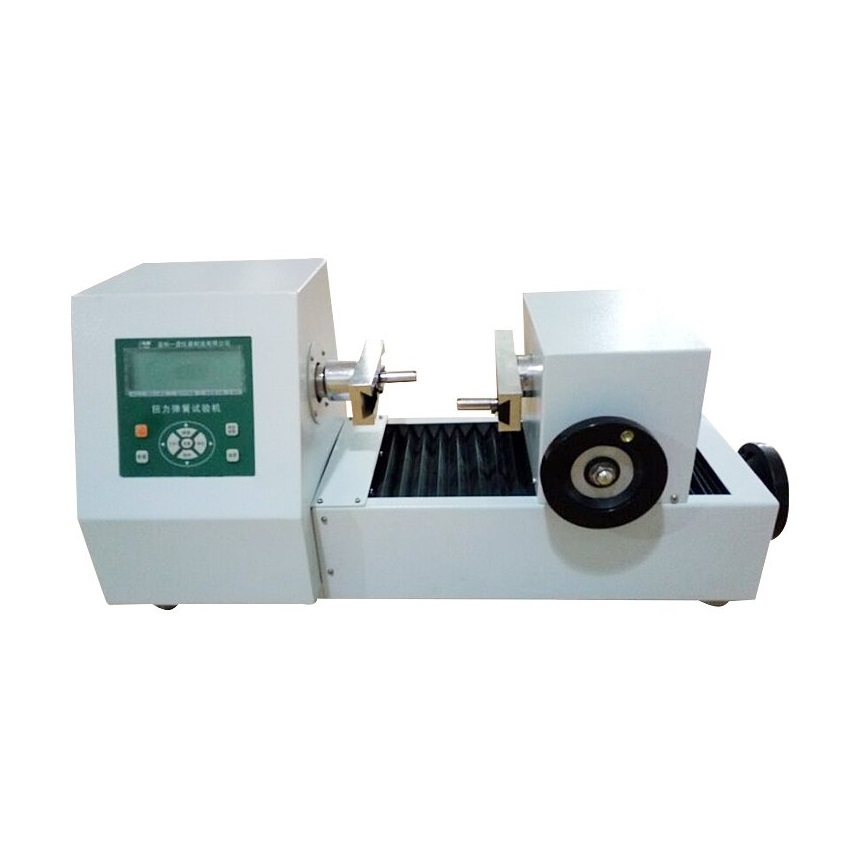

ALIYIQI ADT-30 Horizontal Torsion Spring Testing Machine (0.3~30/0.001N﹒m)

Maximum test torque: 30 N﹒m

Measuring range: 0.3~30 (N﹒m)

Minimum reading value: 0.001 N﹒m

Angle resolution: 0.1°

Range of measurement angle: 0 ~ ± 9999.9°

Rotation diameter of test piece: φ100mm

Length of test piece: 150mm

Loading method: manual

Accuracy: ± 1%

Power supply: AC220V 50Hz

Overall dimensions: 710 × 320 × 290 (mm)

Weight: about 37.5Kg
